Product information

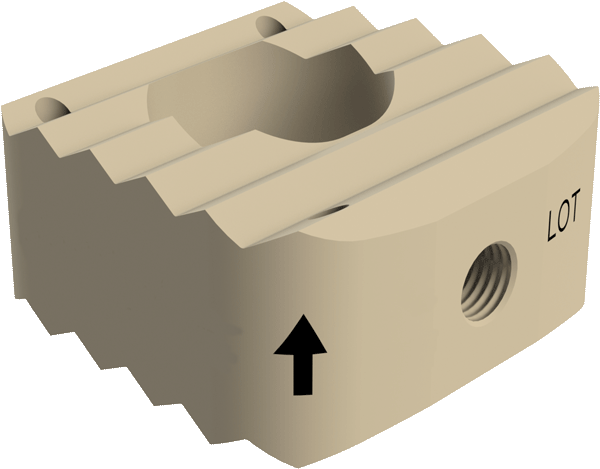

The intervertebral cervical CERVICUS Invadur cages from PINA® Medizintechnik Vertriebs AG are implants designed for implantation between the end plates of the vertebral bodies. These cages are intended for applications in segments C2 to C7. The implants can be inserted via a lateral anterior approach to the cervical spine. Their shape is adapted to the morphology of the intervertebral body spaces to be treated and to the prescribed surgical techniques. The cages are available in various designs and sizes. CERVICUS Invadur® cages are made of polymers from the PAEK group. This specially made Invadur® material is X-ray transparent, bio-, MRI-, and CT-compatible. CERVICUS Invadur cages are available both sterile and non-sterile.
Features
- Three-dot x-ray marker for visualization during imaging
Technical data
| Lordotic angle | 4° |
|---|---|
| Heights | 4 mm - 9 mm (increment 1 mm) |
| Footprints | 12 mm x 12 mm, 12 mm x 14 mm, 14 mm x 16 mm, 17 mm x 14 mm und 17 mm x 16 mm |
